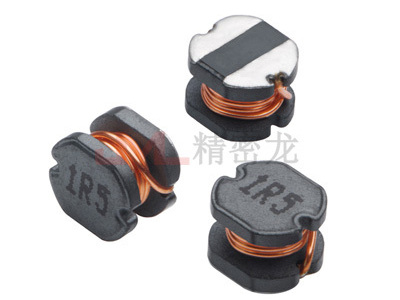

| 型号 |
电感值(μH) |
DCR (Max)直流电阻(Ω) |
IDC (Max)额定电流(A) |
测试频率(kHz) |
| CD43-1.0uH/M |
1.0 |
0.025 |
3.00 |
100 |
| CD43-1.2uH/M |
1.2 |
0.025 |
2.90 |
100 |
| CD43-1.5uH/M |
1.5 |
0.038 |
2.85 |
100 |
| CD43-1.8uH/M |
1.8 |
0.030 |
2.80 |
100 |
| CD43-2.2uH/M |
2.2 |
0.045 |
2.50 |
100 |
| CD43-3.3uH/M |
3.3 |
0.055 |
2.10 |
100 |
| CD43-4.7uH/M |
4.7 |
0.075 |
1.80 |
100 |
| CD43-5.6uH/M |
5.6 |
0.090 |
1.70 |
100 |
| CD43-6.8uH/M |
6.8 |
0.10 |
1.50 |
100 |
| CD43-8.2uH/M |
8.2 |
0.13 |
1.30 |
100 |
| CD43-10uH/M |
10 |
0.14 |
1.20 |
100 |
| CD43-15uH/M |
15 |
0.23 |
1.00 |
100 |
| CD43-18uH/M |
18 |
0.25 |
0.90 |
100 |
| CD43-22uH/M |
22 |
0.26 |
0.80 |
100 |
| CD43-27uH/M |
27 |
0.33 |
0.75 |
100 |
| CD43-33uH/M |
33 |
0.42 |
0.70 |
100 |
| CD43-39uH/M |
39 |
0.50 |
0.65 |
100 |
| CD43-47uH/M |
47 |
0.58 |
0.55 |
100 |
| CD43-56uH/M |
56 |
0.70 |
0.50 |
100 |
| CD43-68uH/M |
68 |
0.85 |
0.48 |
100 |
| CD43-82uH/M |
82 |
1.00 |
0.45 |
100 |
| CD43-100uH/M |
100 |
1.30 |
0.30 |
100 |
| CD43-150uH/M |
150 |
1.70 |
0.25 |
1MHz |
| CD43-220uH/M |
220 |
2.70 |
0.16 |
1MHz |
| CD43-680uH/M |
680 |
9.70 |
0.15 |
1MHz |
| CD43-1.0mH/M |
1000 |
13.00 |
0.08 |
1MHz |
| |
|
|
|
|
| Remark: ● MTolerance: N:±30% , M:±20% , K:±10% |
|
|
| ● Inductance Tested : 1uH~100uH at 100kHz,0.25Vrms , 150uH~1000uH at 1MHz/0.25V (20℃) |
| ● IDC: DC current at which the inductance drops approximate 20% from its value without current |
| ● Operating Temperature : -25℃ ~ +105℃ |
|
|
| ● Measure Equipment: |
|
|
|
| INDUCTANCE : Agilent HP-4284A , HP-4285A |
|
|
| IDC : Agilent HP-4284A+HP-42841A |
|
|
|
| DCR : CHEN HWA 502A |
|
|
|
